3mm Thick MS Universal Motor Mounting Bracket/Clamp for 42mm/45mm Planetary Gear Box, NEMA17 Planetary Geared, Rectangular Gearbox Motor Matt Black

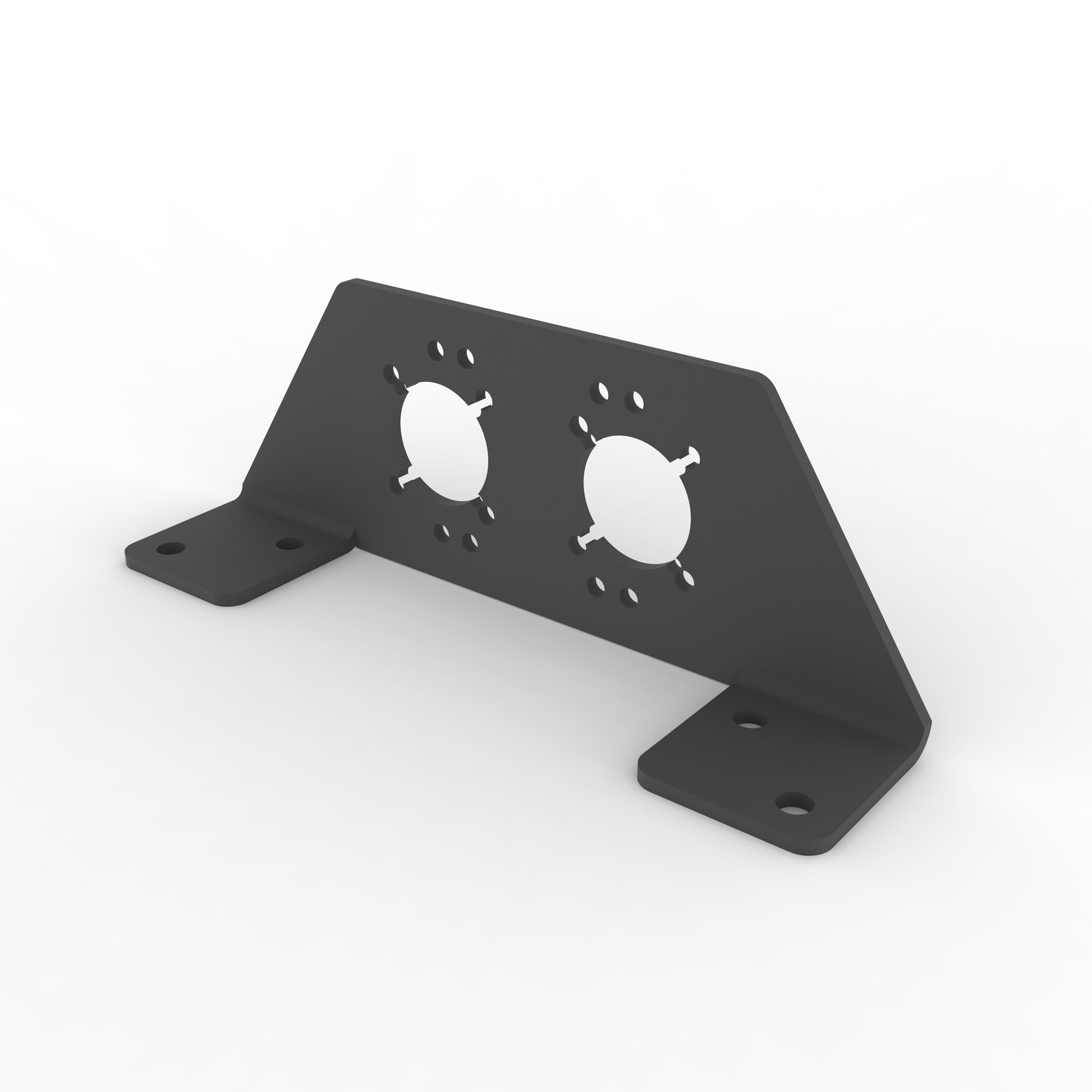

Simplify your motor mounting needs with the innovative 3mm Thick MS Universal Motor Mounting Bracket/Clamp, Model UB 3IN1. This truly versatile bracket is expertly engineered to provide a secure and stable platform for three common motor types: Rectangular Gearbox Motors, 42mm/45mm Planetary Geared Motors, and NEMA17 Gearbox Motors.

Crafted from durable Mild Steel (MS) with a substantial 3mm thickness, this bracket ensures exceptional rigidity and resistance to vibrations, keeping your motors firmly in place. The premium matt black powder-coated finish not only gives it a sleek, professional appearance but also offers superior protection against scratches, chips, and corrosion, ensuring long-lasting performance in any environment.

A standout feature of the UB 3IN1 model is its reversible design: the bracket can be used interchangeably on both the left and right sides of your motor, providing maximum flexibility during assembly and reducing complexity in your designs. Weighing 230 g, it offers a solid and dependable mounting solution without being overly cumbersome.

This universal bracket is an indispensable component for makers, engineers, and hobbyists working on robotics, industrial automation, 3D printers, CNC machines, or any project requiring adaptable and robust motor fixation.

Key Features:

• True Universal Compatibility: Designed to mount Rectangular Gearbox Motors, 42mm/45mm Planetary Geared Motors, and NEMA17 Gearbox Motors with a single bracket.

• Robust & Durable: Constructed from 3mm thick Mild Steel for exceptional strength, rigidity, and vibration dampening.

• Premium Matt Black Powder Coat Finish: Provides a professional aesthetic and enhanced protection against wear, tear, and corrosion.

• Reversible / Left & Right Side Use: Intelligent design allows for seamless mounting on either the left or right side of your motor.

• Extended Base for Stability: Features a 172mm long base with multiple mounting points for a wide, stable attachment to your frame or chassis.

• Reliable Performance: Ensures secure motor fixation, minimizing movement and extending the lifespan of your components.

• Ideal for: Robotics, automation systems, 3D printing, CNC machines, custom fabrication, and educational projects requiring multi-motor versatility.

• Proudly Made in India: Guarantees superior quality and craftsmanship.

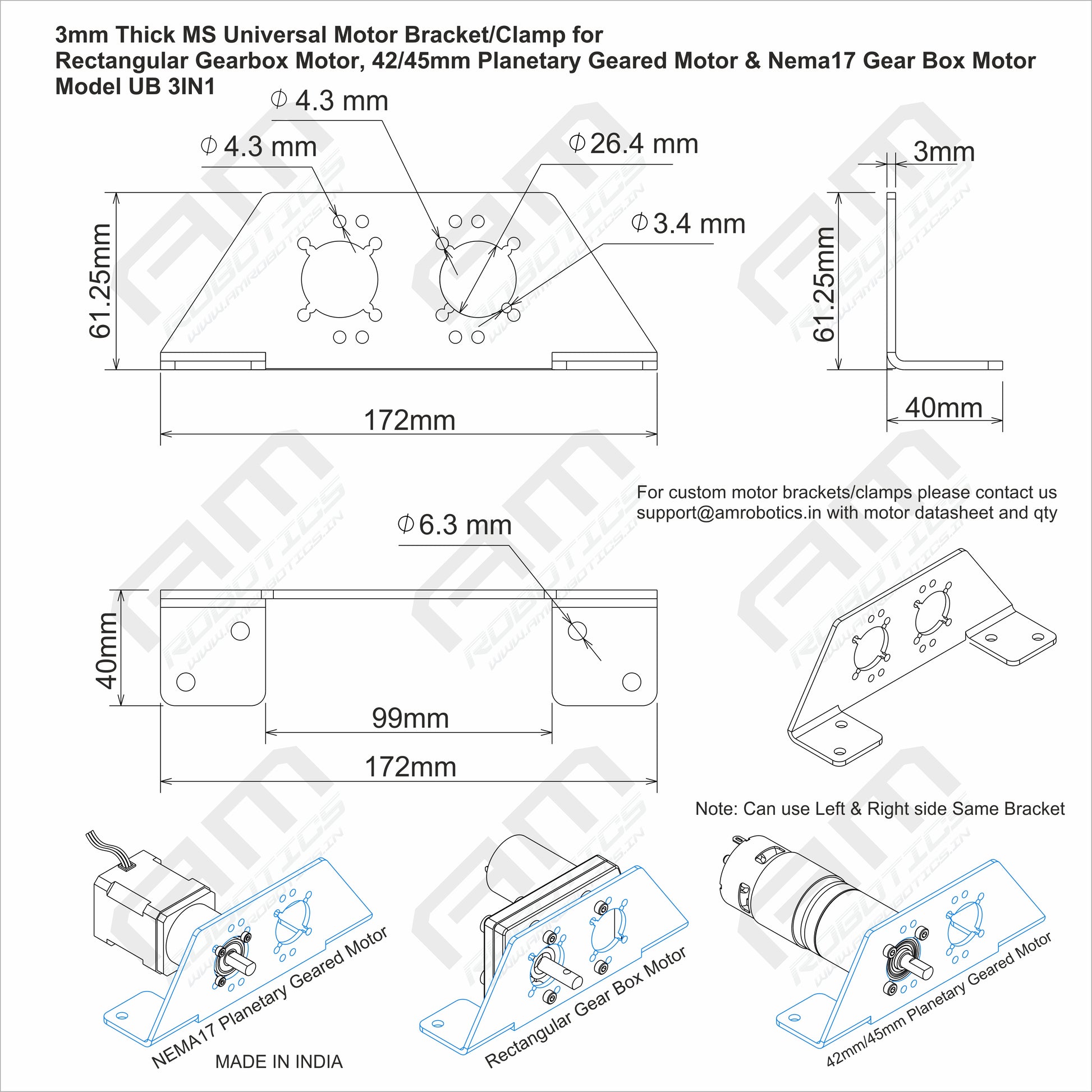

Technical Specifications:

• Material: 3mm Thick Mild Steel (MS)

• Finish: Matt Black Powder Coated

• Compatibility: Rectangular Gearbox Motors, 42mm/45mm Planetary Geared Motors, NEMA17 Gear Box Motors

• Weight: 230 gms

• Overall Height (Motor Mounting Plate): 61.25mm

• Base Length: 172mm

• Bracket Width (Base Flanges): 40mm

• Motor Mounting Hole Patterns (Combined):

  • For 42mm/45mm Planetary: Features Ø26.4mm circular pattern for motor body.

  • For NEMA17: Includes Ø4.3mm and Ø3.4mm holes (standard NEMA17 bolt pattern).

  • For Rectangular Gearbox: Features Ø4.3mm holes suitable for various rectangular motor patterns.

• Base Mounting Hole Diameter: Ø6.3mm (multiple holes on the base flanges)

• Base Mounting Hole Spacing: 99mm (between inner sets of holes along the length)

Package Includes:

• 1 x 3mm Thick MS Universal Motor Mounting Bracket/Clamp - Model UB 3IN1 (Matt Black)

For Custom Requirements: Looking for custom motor brackets or clamps? Please get in touch with us at support@amrobotics.in with your motor datasheet and required quantity for bespoke solutions.
