AM ROBOTICS Center shaft DC Motor Mounting bracket / Clamp Matt Black 2mm Thickness

This motor mounting bracket by AM ROBOTICS is designed for Center shaft DC Geared DC Motor to make the motor mounting easier and faster.

The clamps serve as the fundamental parts when it comes to chassis. With this bracket, you can fix your 3 motors to the chassis according to your wish.

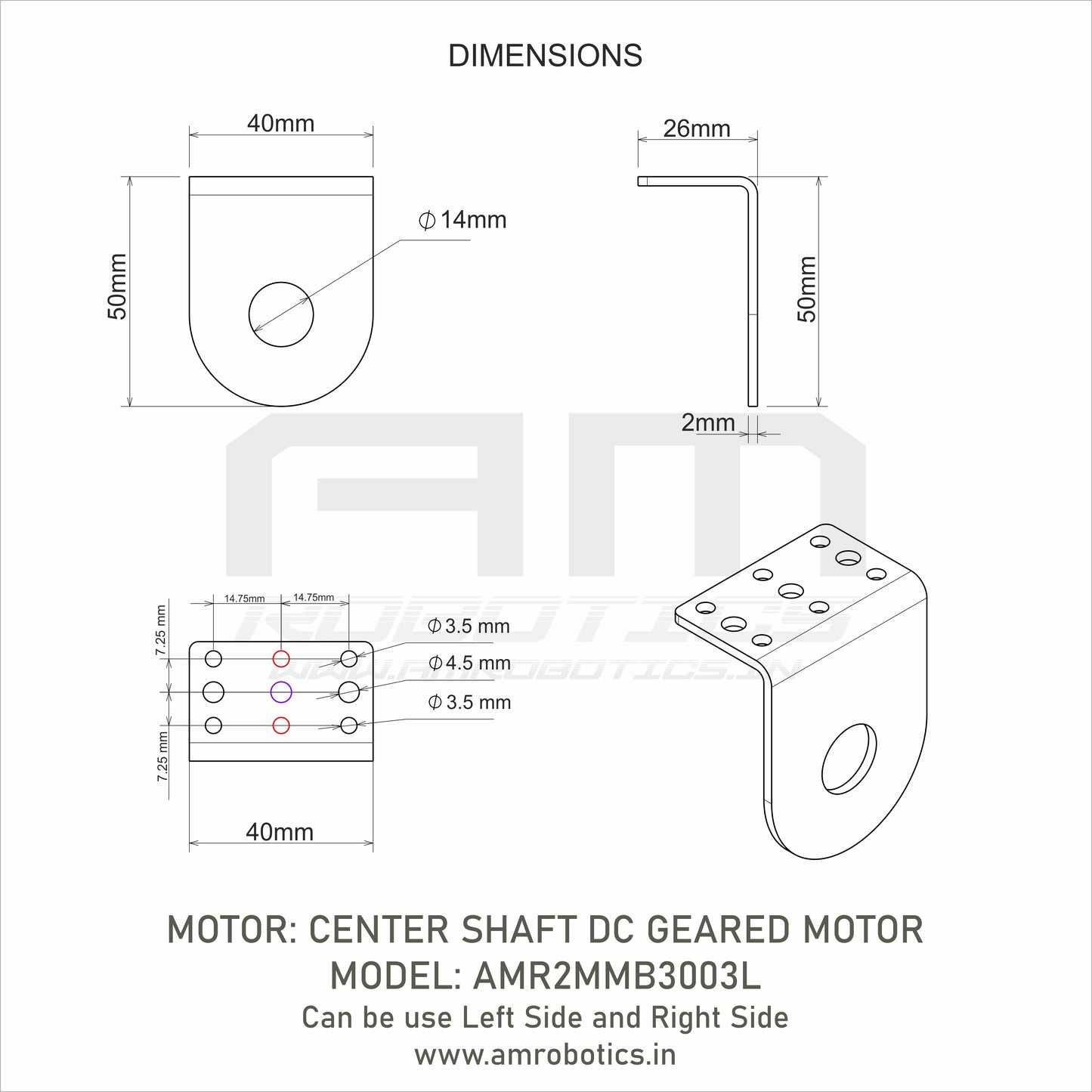

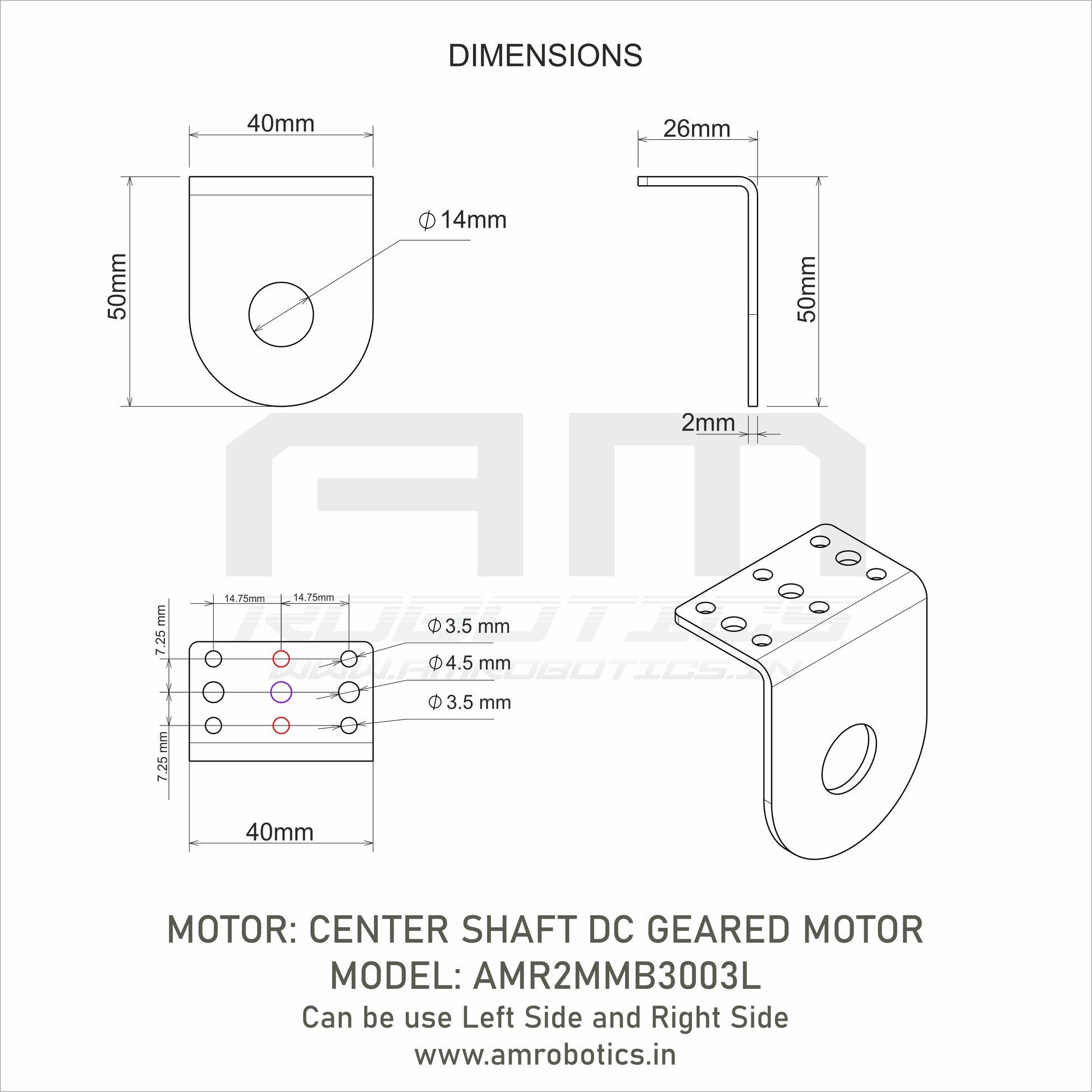

The bracket is made up of 2 mm thick Hardened Mild Steel, which gives them excellent strength and stability. It has 3.5 mm diameter holes for attaching the motor to the bracket and 4 mm and 3MM diameter holes for mounting the bracket to the chassis or application.

Note: We haven’t included any Motors in this pack.

Features :

1. AM ROBOTICS branded brackets.
2. Made up of good quality MS.
3. Specially designed for Johnson Geared Motor.
4. Possess good stability and durability

Applications :

1. DC motor position/velocity control
2. Position and velocity servomechanisms
3. Factory automation robots
4. Numerically controlled machinery
5. Computer printers and plotters
