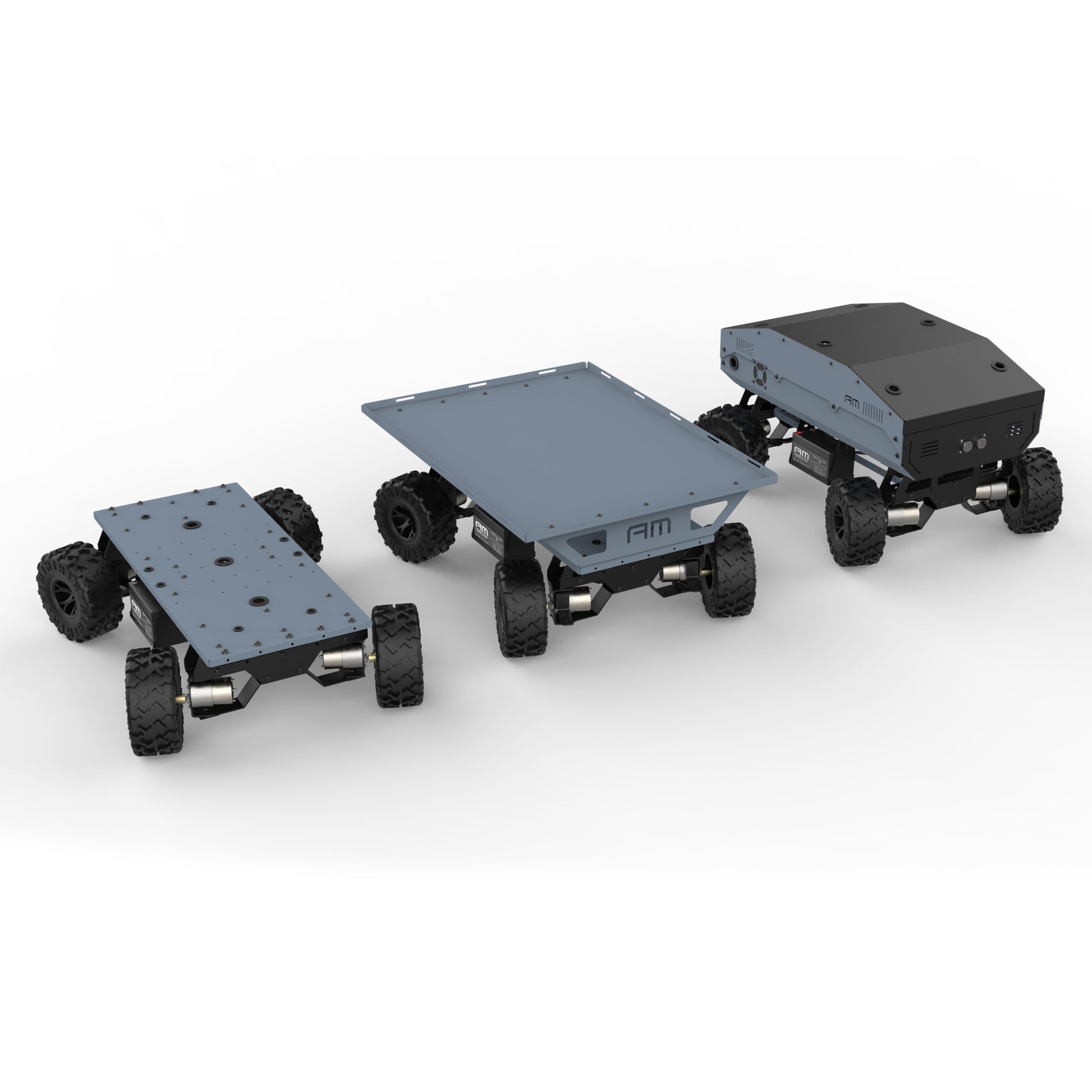

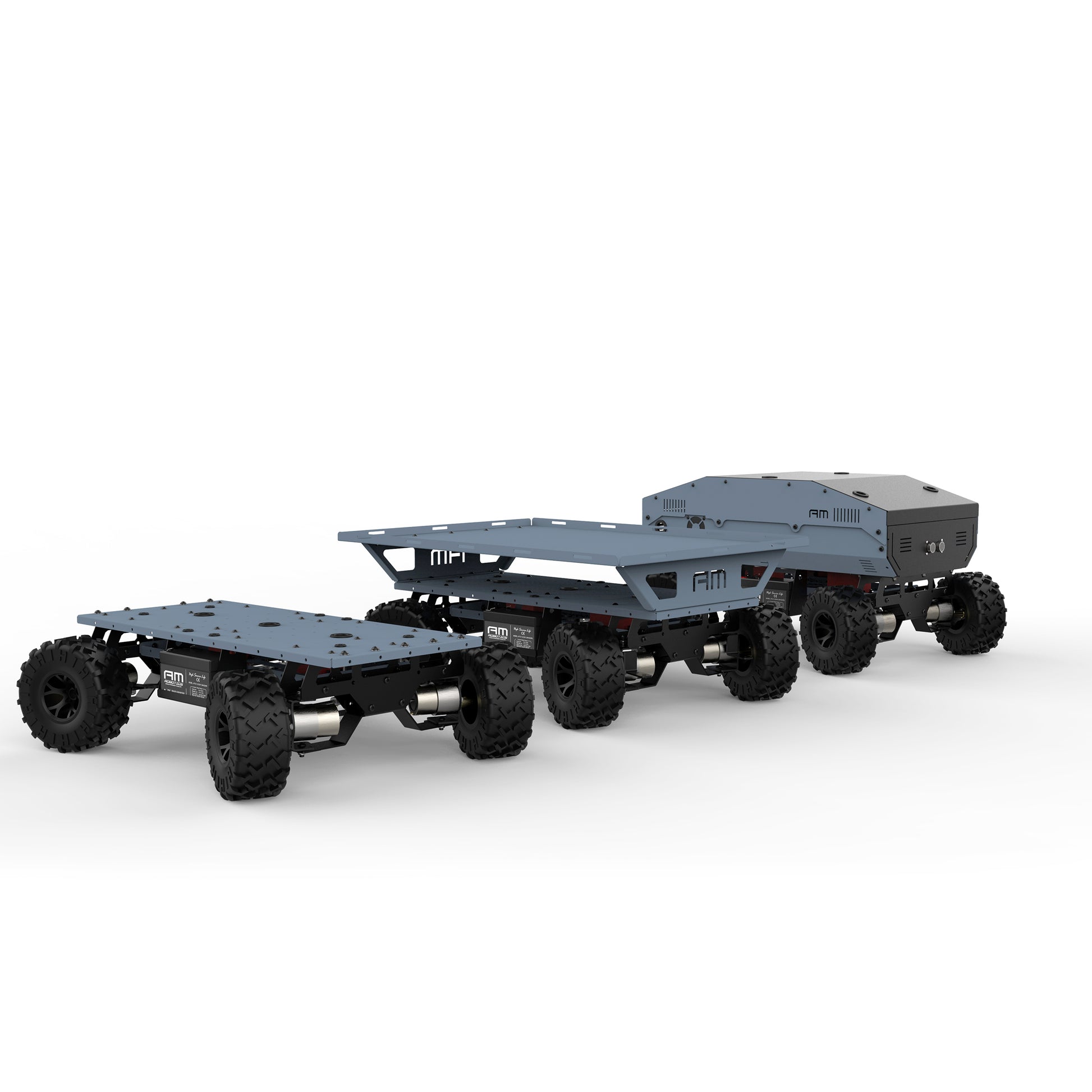

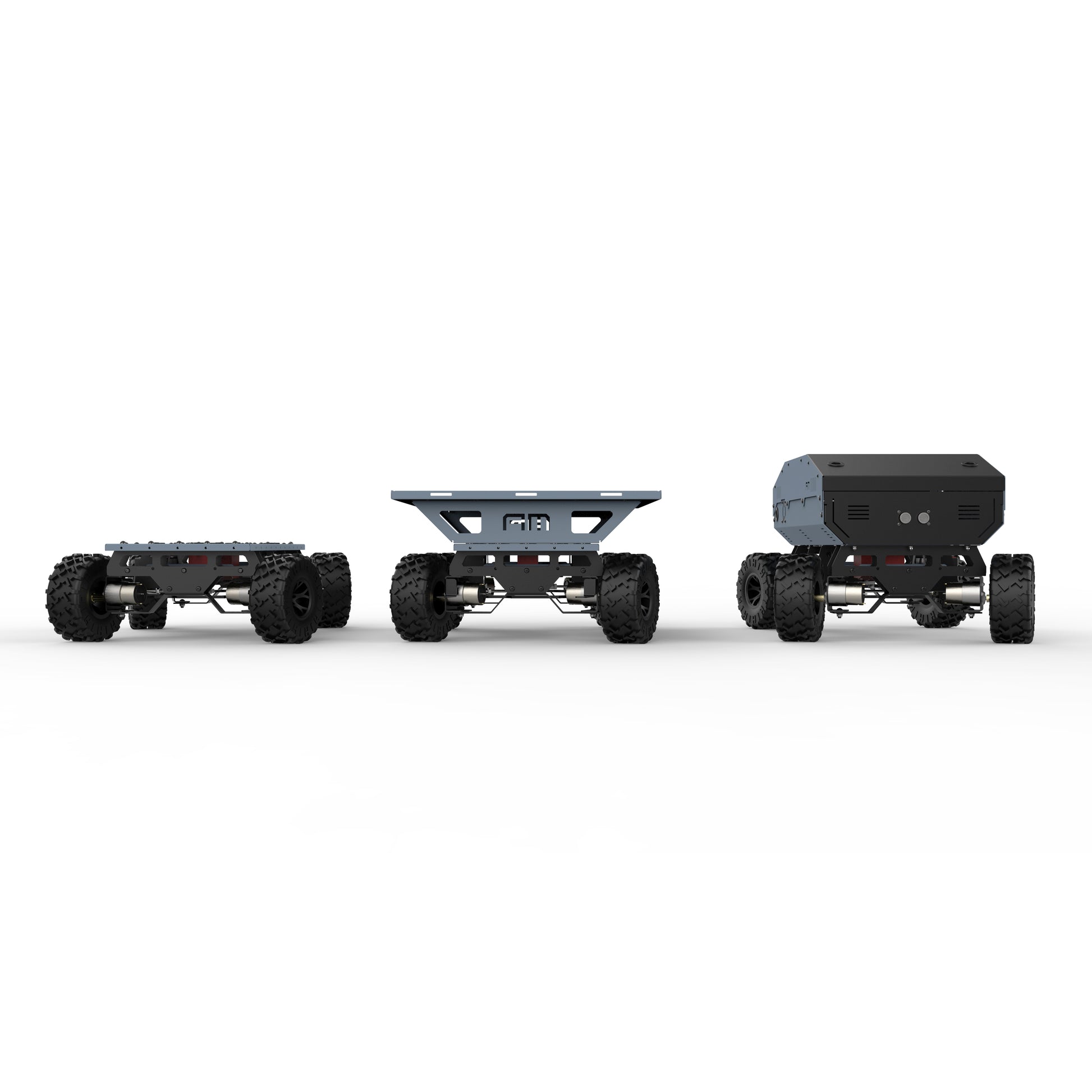

ROVER 4WDXL60R 3-in-1 DO IT YOURSELF CHASSIS KIT
Couldn't load pickup availability

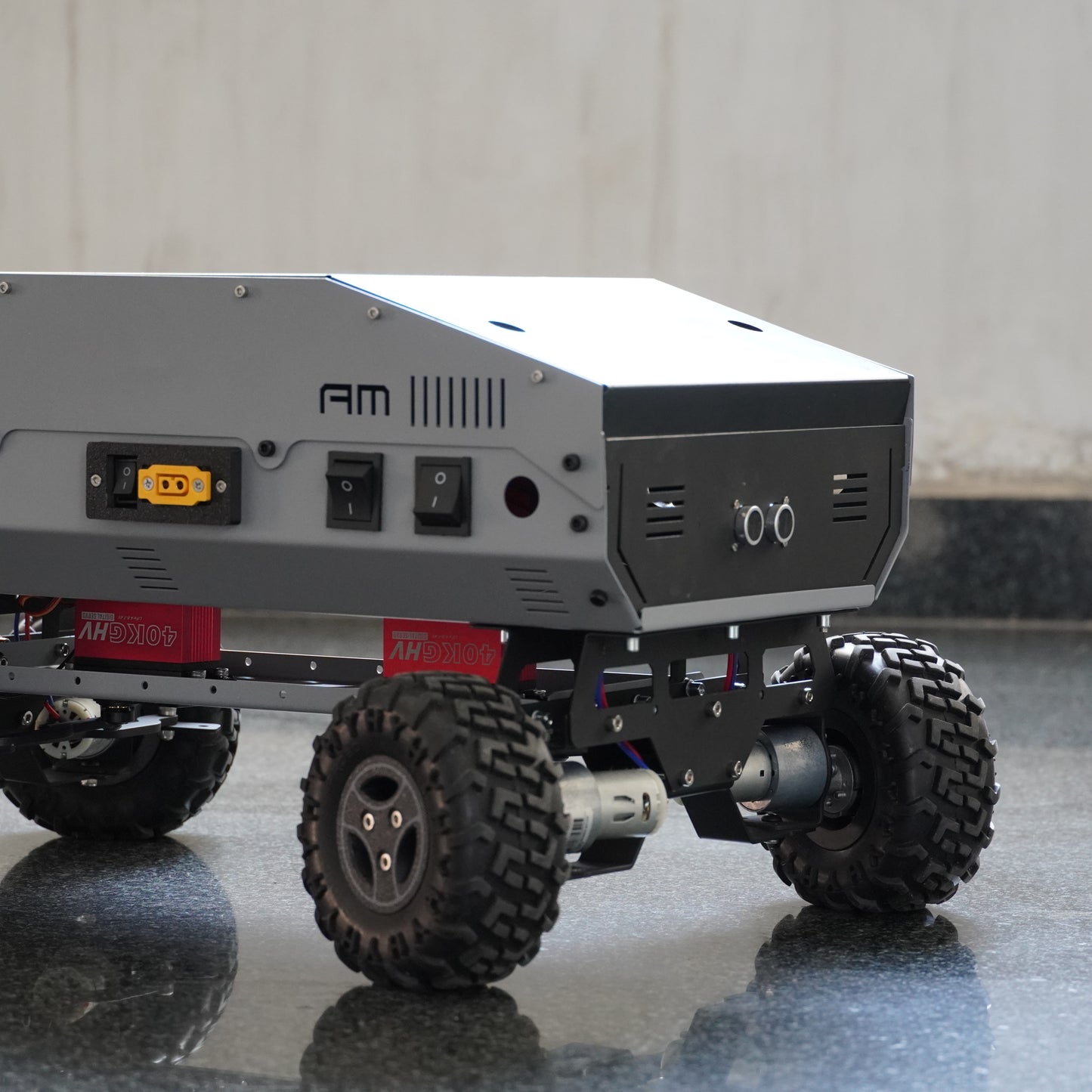

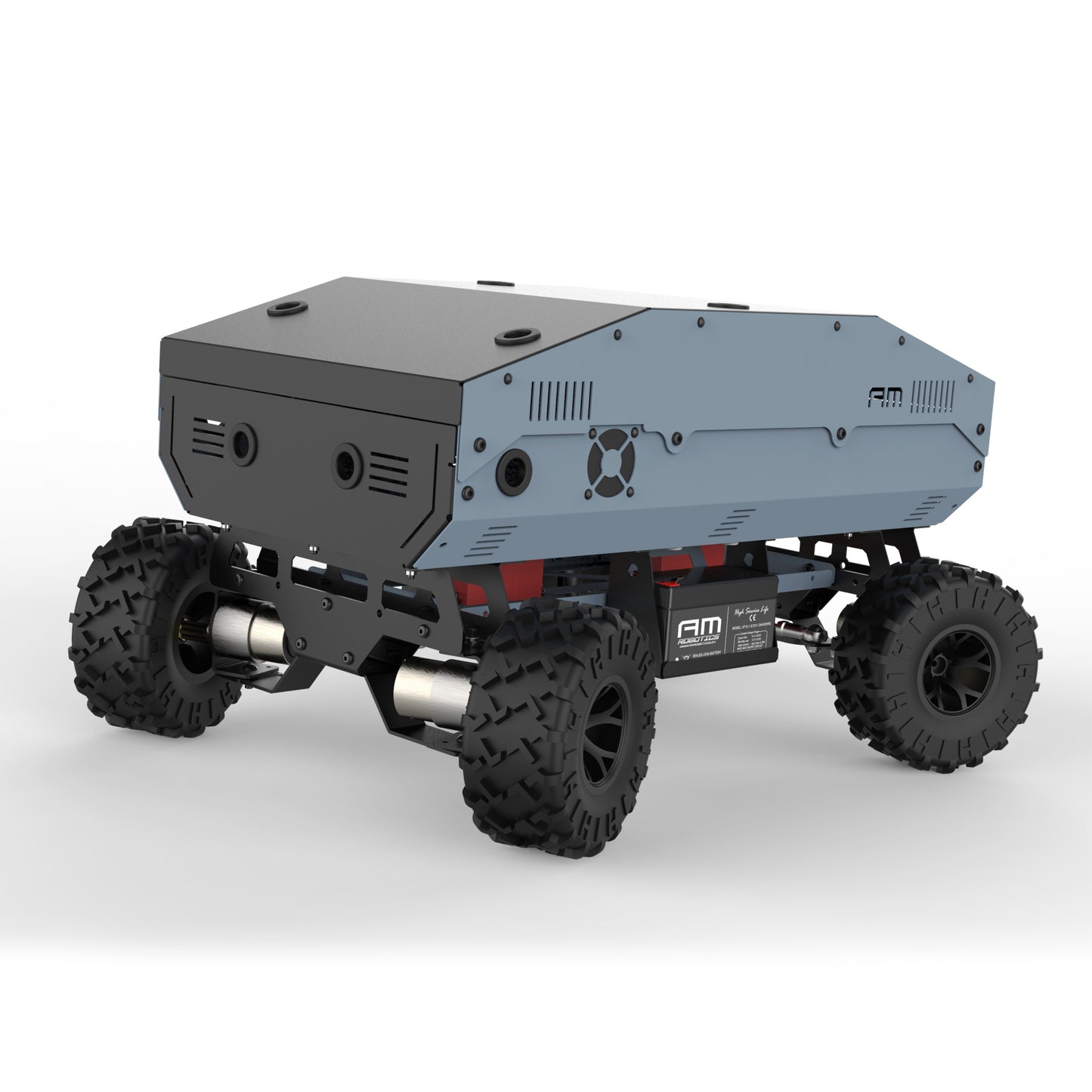

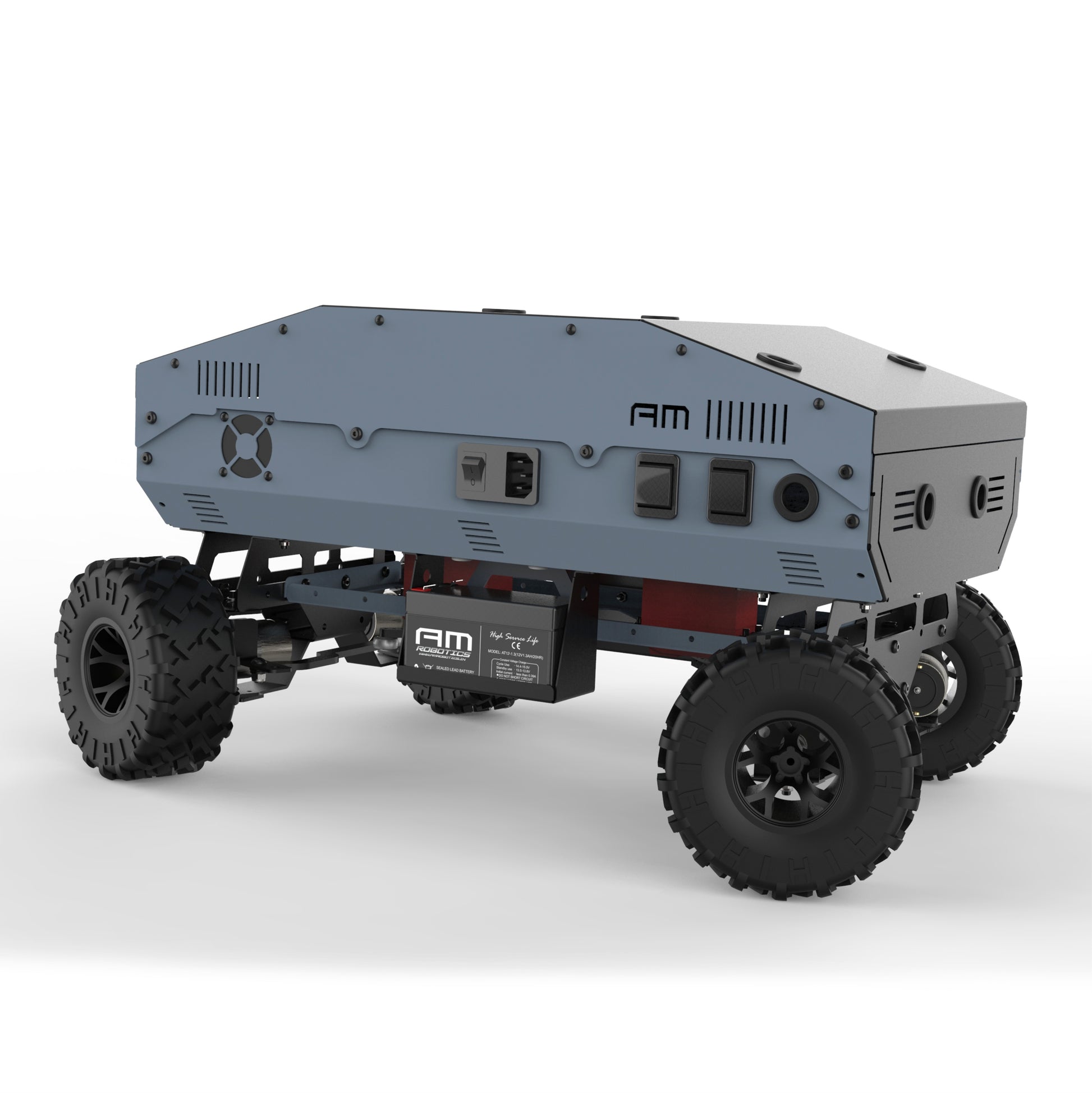

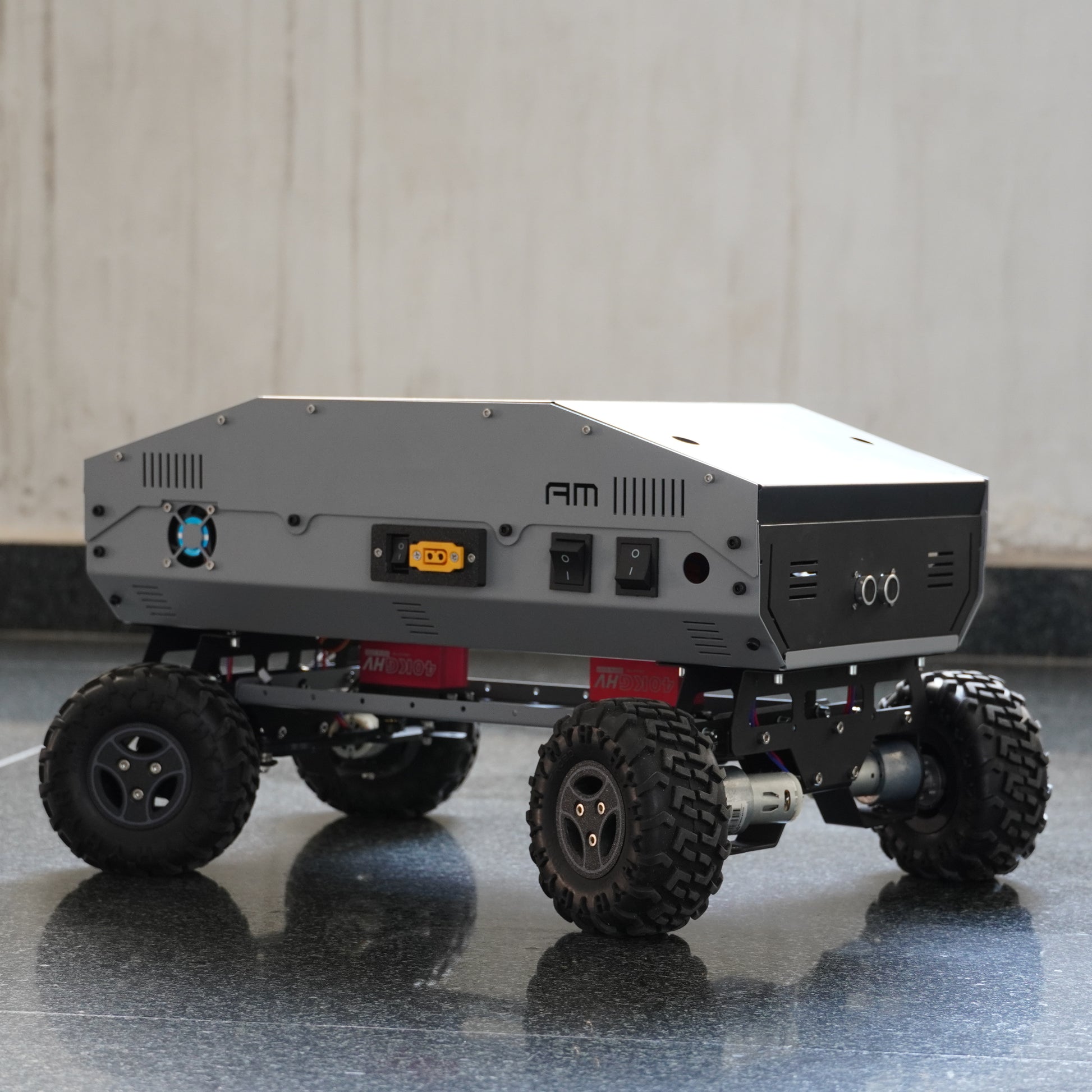

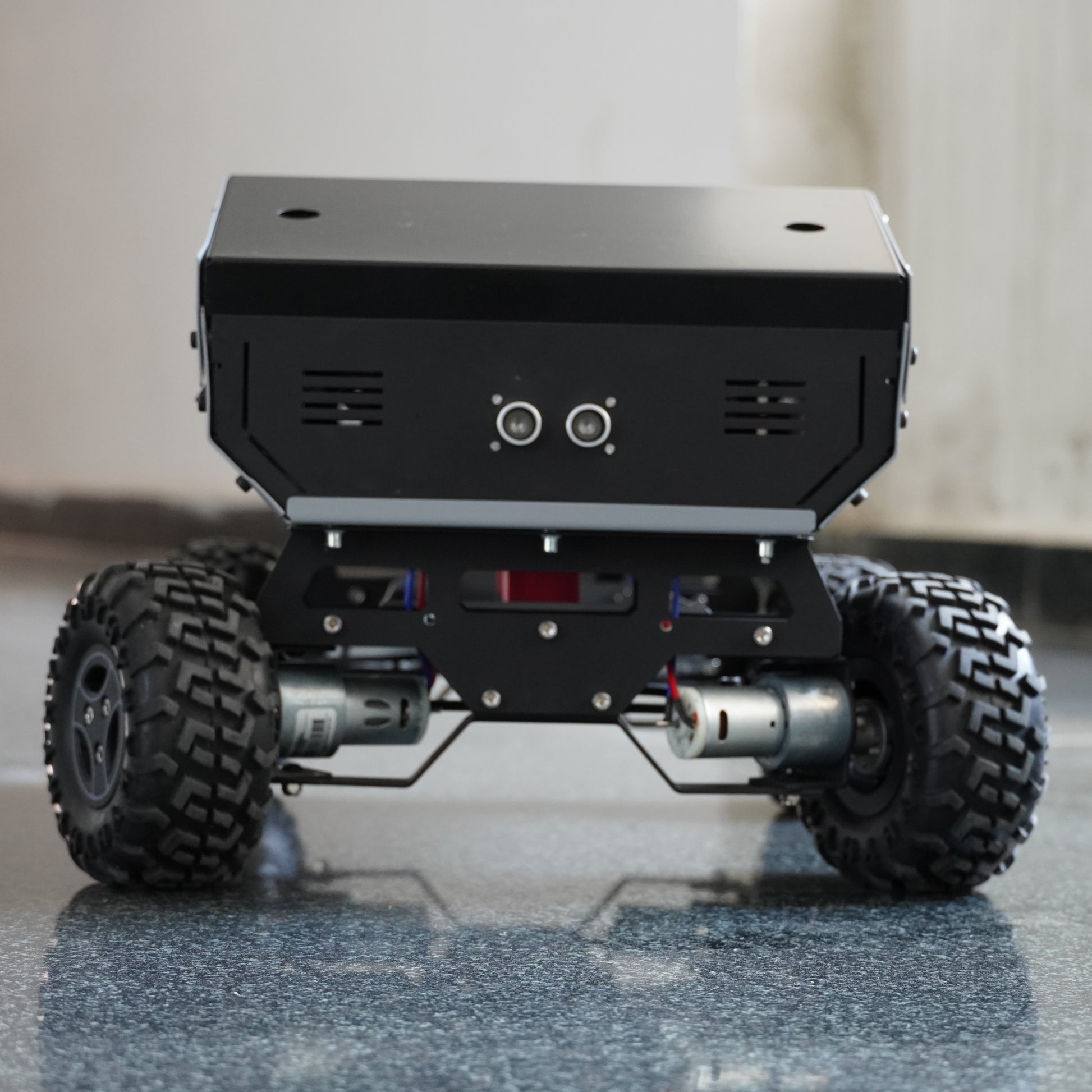

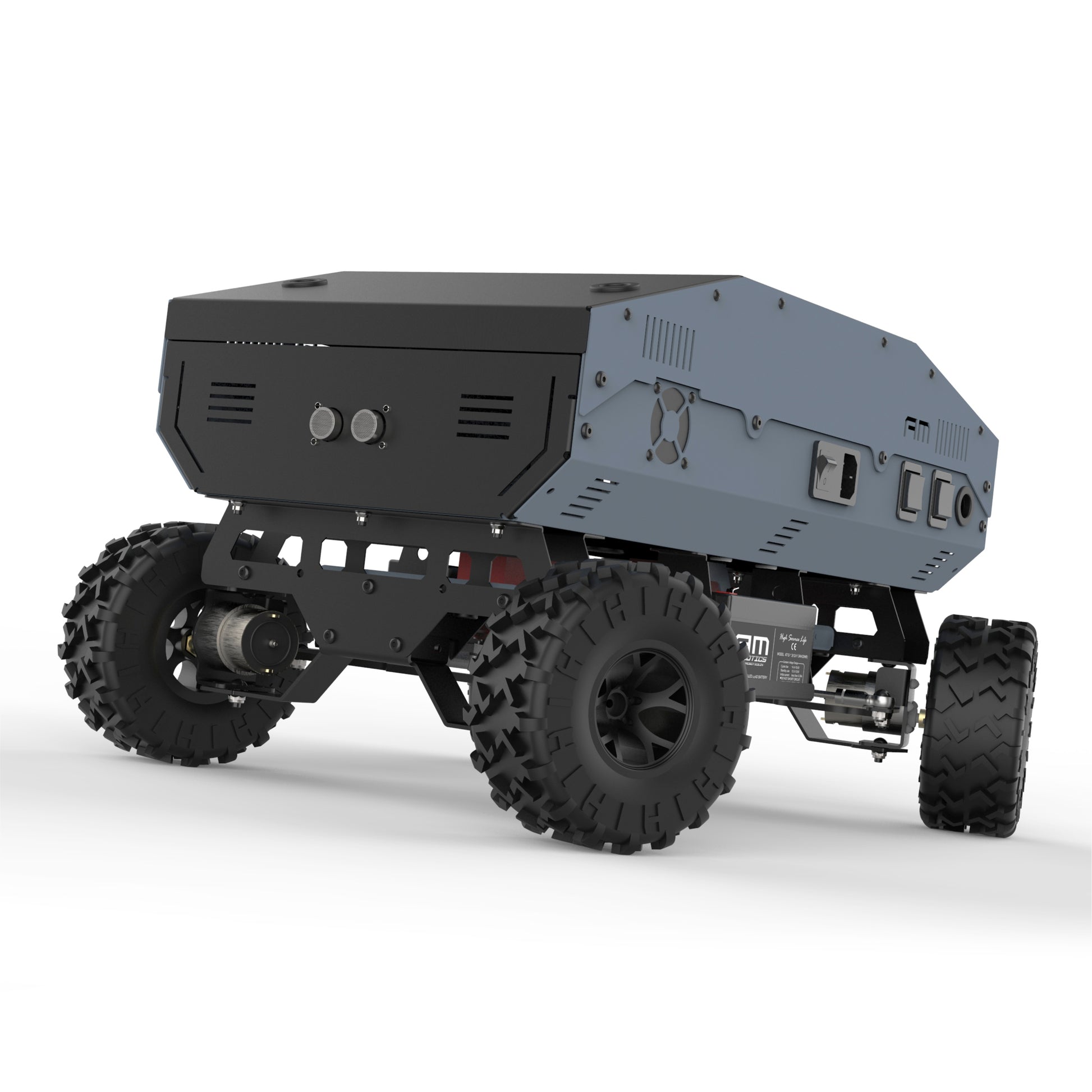

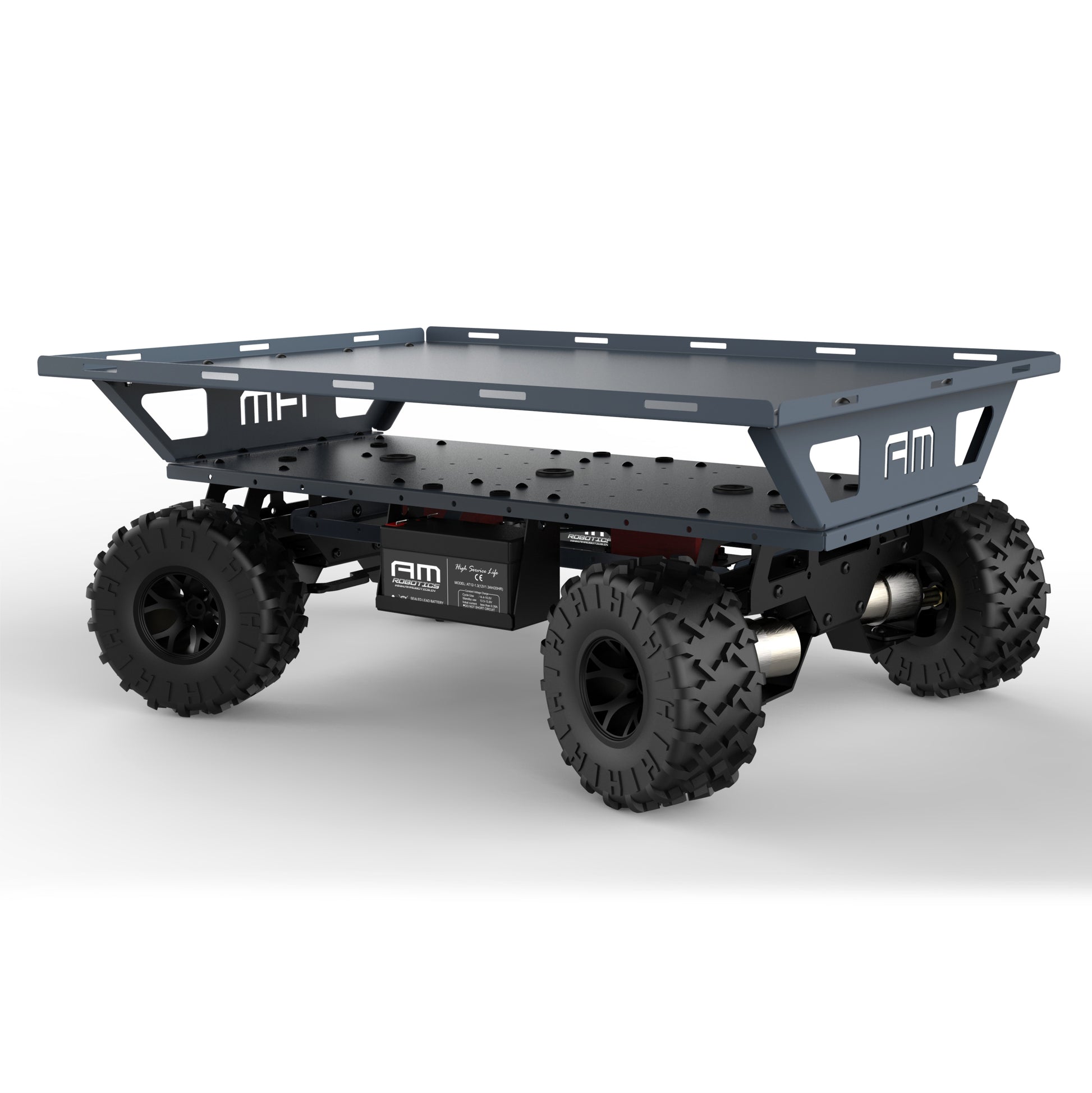

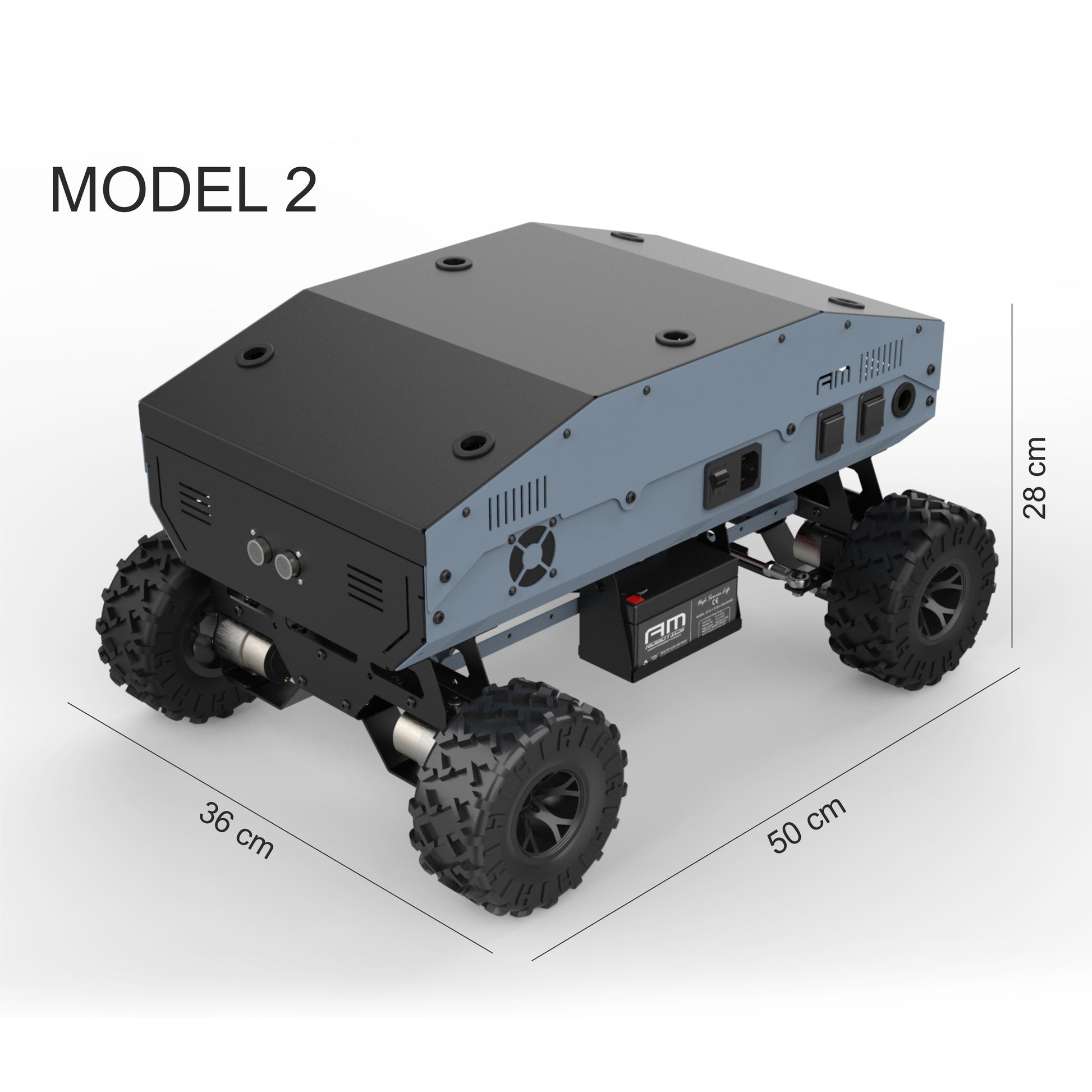

ROVER 4WDXL60R is an outdoor/indoor robot with 4 High Torque DC Geared motors and High-quality wheels with a Diameter of 125MM and a Width of 60MM. The robot has a payload capacity of 5 KG weight which is suitable for carrying loads like cameras, camcorders with Pan-tilt, and other small equipment and electronics.
Features:
1. 4-wheel Drive
2. 4 Wheel Turning Mechanism
3. Chassis Built with 1 mm Sheet Metal
4. 4 High Torque DC Geared Motors
5. High-Quality Wheels of 125 mm Diameter and Width of 60 mm
6. Can be used as Material Transport Robot, Serving Robot, Surveillance Robot, etc...

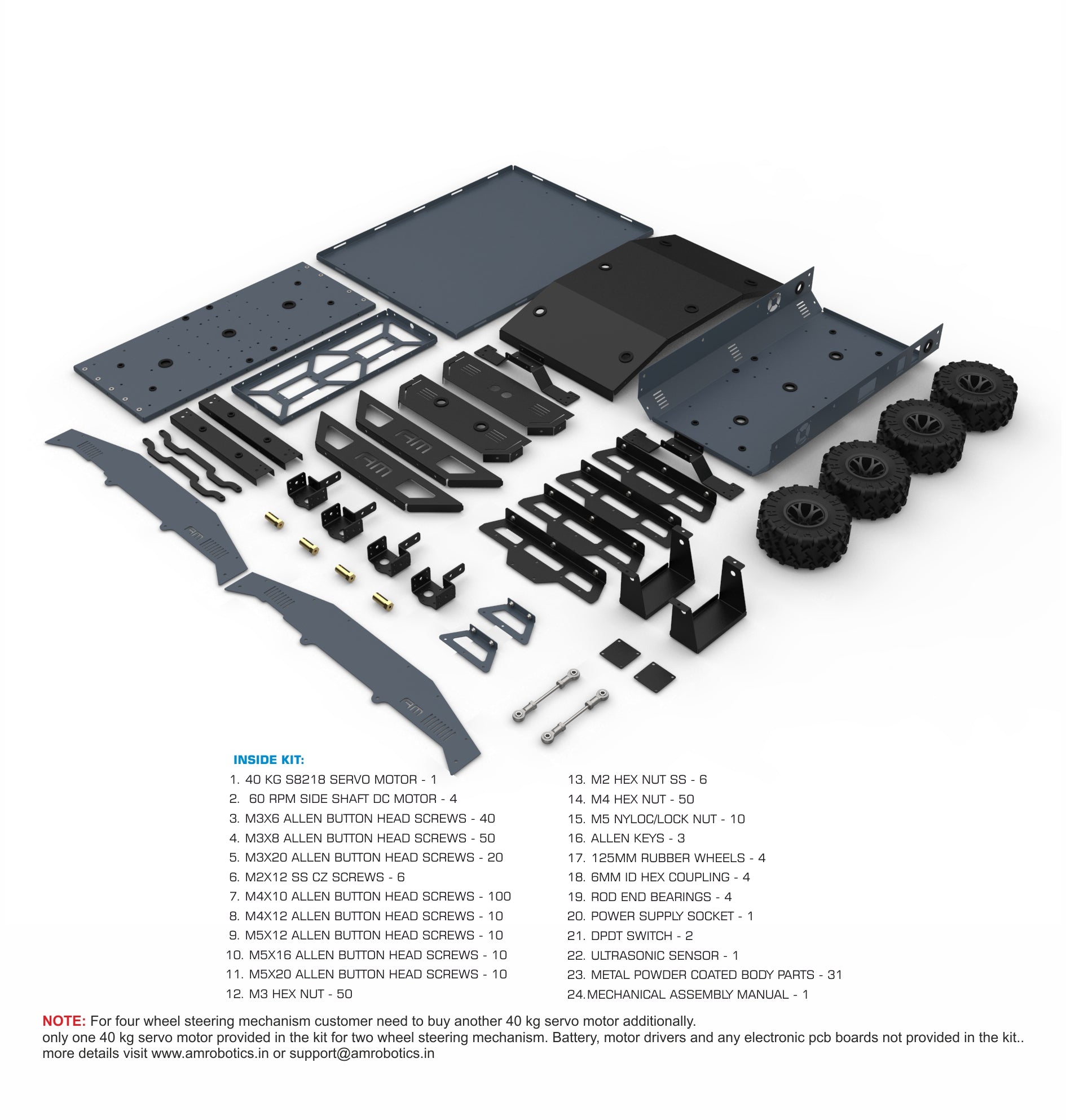

Inside Kit:
1. 40 KG S8218 SERVO MOTOR - 1
2. 60 RPM SIDE SHAFT DC MOTOR - 4
- Base Motor RPM: 9000
- No load RPM: 60
- Rated RPM: 53/li>
- Gear ratio: 1:168.75
- Rated voltage (V): 12
- Rated current (mA): 300
- Rated power (W): 1.3
- Rated Torque (Kgcm): 2.4
- Stall Torque (Kgcm): 10.4
- Shaft length (mm): 15
- Shaft diameter (mm): 6
3. M3X6 ALLEN BUTTON HEAD SCREWS - 40
4. M3X8 ALLEN BUTTON HEAD SCREWS - 45
5. M3X20 ALLEN BUTTON HEAD SCREWS - 10
6. M2X12 SS CZ SCREWS - 5
7. M4X10 ALLEN BUTTON HEAD SCREWS - 100
8. M4X12 ALLEN BUTTON HEAD SCREWS - 10
9. M5X12 ALLEN BUTTON HEAD SCREWS - 15
10. M5X16 ALLEN BUTTON HEAD SCREWS - 4
11. M3 HEX NUT - 30
12. M2 HEX NUT SS - 5
13. M4 HEX NUT - 50
14. M5 NY LOC/LOCK NUT - 20
15. ALLEN KEYS (L TYPE) - 3
16. ALLEN KEYS (T TYPE) - 2
17. 125MM RUBBER WHEELS - 4
18. 6MM ID HEX COUPLING - 4
19. STEERING COLUMN SHAFT - 2
20. POWER SUPPLY SOCKET - 1
21. DPDT SWITCH - 2
22. ULTRASONIC SENSOR - 1
23. METAL POWDER COATED BODY PARTS - 31
24. POWER CORD - 1
25. 4015 12V FANS - 2
26. MOTOR WIRES
27. MECHANICAL ASSEMBLY MANUAL - 1
NOTE:

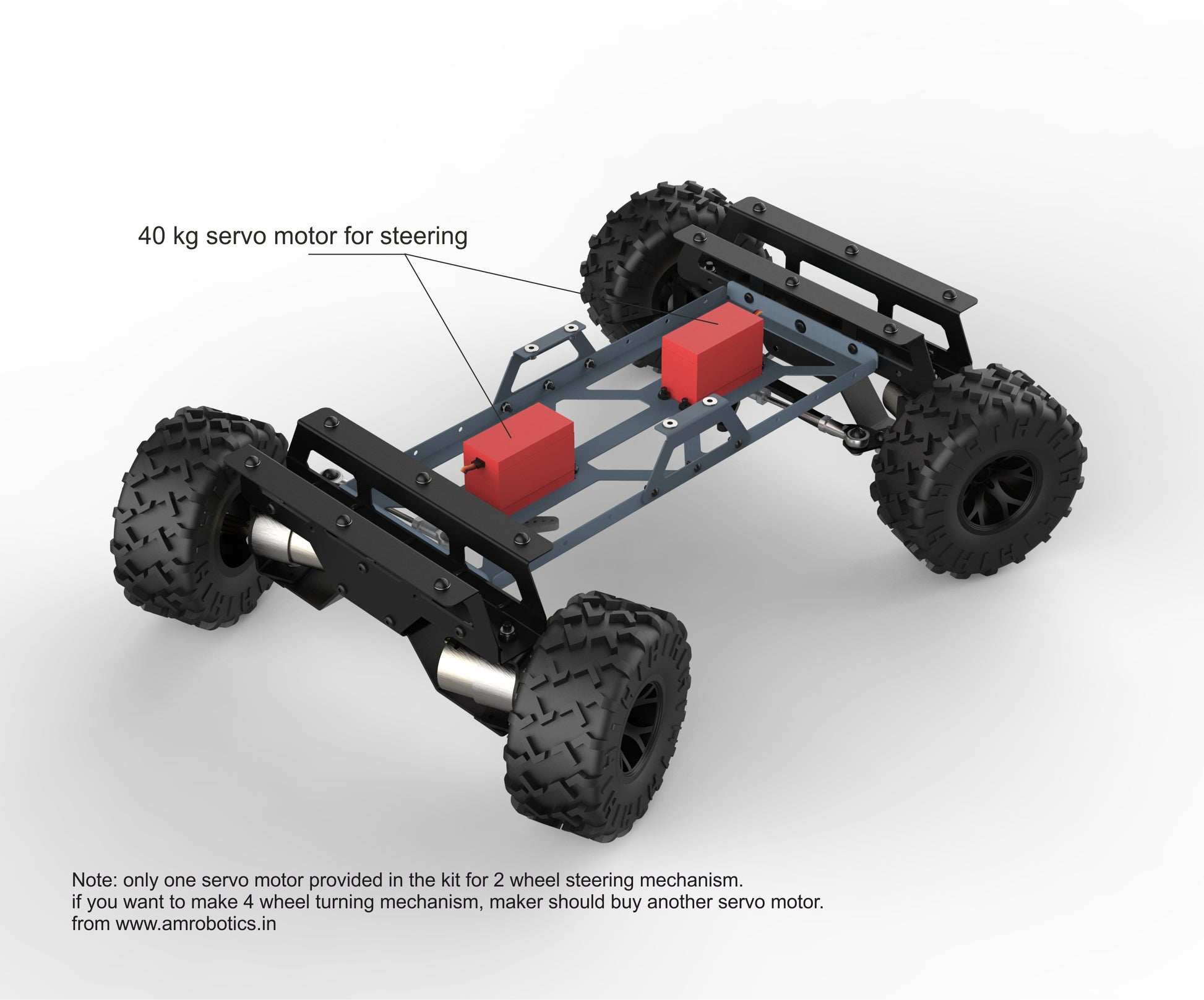

For the four-wheel steering mechanism, the customer needs to buy another 40 kg servo motor additionally.
Only one 40 kg servo motor is provided in the kit for the two-wheel steering mechanism. Battery, motor drivers, and any electronic PCB boards not provided in the kit…
